VComm Terrain Server Status

ID:  2044

Object Description

The VComm Terrain Server Status object is used to monitor the status of the VComm Terrain Server (VTS). A value of -1 indicates that the VTS is not active. Any other value is the amount of time in seconds it takes VComm to request and receive a terrain propagation loss solution from the VTS. This object's output can be used to send VTS status to a host computer.

VComm will only issue a request to the VTS if an antenna has moved more than the Transmitter Position Threshold. This value defaults to 500 meters, and can be changed through a VCOMM registry key value. Refer to the VComm User's Manual for more information.

To use this object, simply connect a No Connection object to the output pin, start V+, right click on the output pin, and select Monitor. A monitor value will appear on the output pin.

Output Pin

RT DELAY

The RunTime DELAY pin provides a floating point number indicating the amount of time, in seconds, it takes VComm to request and receive a terrain propagation loss solution from the VTS. A value of -1 indicates that the VTS is not active.

Other VComm Monitoring Objects

  1. VComm Signal Strength

  2. VComm Get Number of Incoming Transmitters

  3. VComm Get Strongest Transmitter ID

  4. VComm Radio Data Monitor

  5. VComm Receiver Audio RMS Level

  6. VComm Is Incoming Transmission Secure

Example

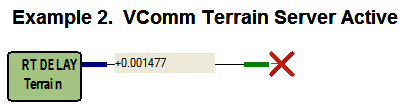

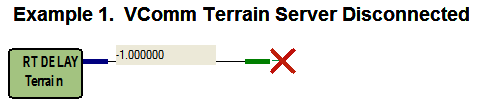

The figures below present examples of how the VComm Terrain Server Status object is used. Example 1 shows that the VTS is not active. Example 2 provides an output value of 0.001477 seconds (or 1.477 milliseconds) of round trip latency from the time of request to the time of receipt.
