VComm Is Incoming Transmission Secure

ID:  2081

Object Description

The VComm Is Incoming Transmission Secure object can be used in conjunction with VComm Radio Objects. It is a VComm monitoring object which attaches to a VComm radio so as to determine if the incoming transmission is secure or clear.

To use the object, simply connect the radio handle output of a radio object to the radio handle input of this object. The output pin can be connected to anything accepting floating point input (such as an output port or a No Connection object).

Input Pin

HNDL

This input pin determines which radio is monitored by this object. This pin should be connected to the radio handle output pin of the radio object to be controlled.

Output Pin

padlock

This pin indicates whether the incoming transmission is Secure with a value of 1. Otherwise, the value is 0.

Example

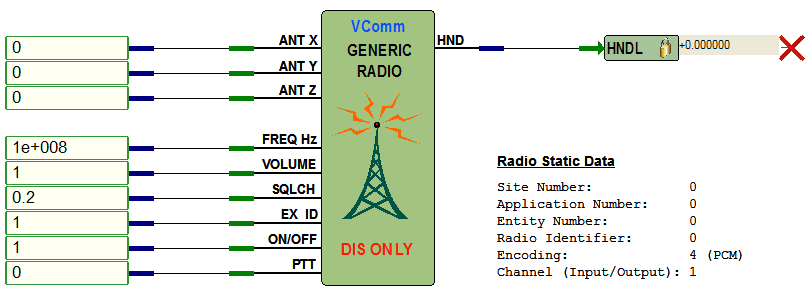

The figure below presents an example of how the VComm Is Incoming Transmission Secure object is used with a VComm GENERIC Radio, V8 DIS Only object. In this example, the incoming transmission is clear as indicated by the output pin's value of 0.
