VComm Radio Entity Type

ID:  2089

Object Description

The VComm Radio Entity Type object can be used in conjunction with VComm Radio Objects to provide specific entity type information for a given radio.



To use the object, simply connect the radio handle output of a radio/intercom object to the radio handle input of this object. The data that is present on the input pins is applied to the radio/intercomm object to which it is attached.

Input Pins

Handle

Radio Handle from either the VComm GENERIC Radio, V8 DIS Only or the VComm GENERIC Radio, V8 DIS/HLA.

Domain

The Domain pin is used to designate from which country the radio originates. Refer to the SISO enumerations document (SISO-REF-010-2006) for values, the first six of which are described in the following table:

0

Other

1

Land

2

Air

3

Surface

4

Subsurface

5

Space



Country

The Country pin is used to designate from which country the radio originates. Refer to the SISO enumerations document (SISO-REF-010-2006) for values.

Nomenclature Ver

The Nomenclature Version pin is used to provide an enumeration value as per the SISO enumerations document.

Nomenclature

The Nomenclature pin is used to provide an enumeration value as per the SISO enumerations document.

Example

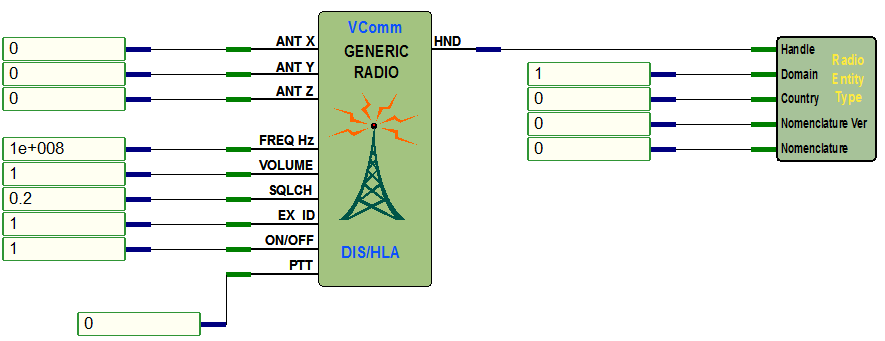

In this example, a VComm GENERIC Radio is connected to a VComm Radio Entity Type object. The Domain is set to 1 representing Land. All the other values are set to 0, which is the default.
