VComm Min Range

Object Description
The VComm Min Range object can be used in conjunction with VComm Radio Objects to accept an input for slant range expressed in units meters. This value will be compared against the actual slant range between a transmitter/receiver pair. If the actual range is less than the range provided to the Minimum Range object, the transmitter and receiver will be processed as though they were 1 meter apart from each other. This object is typically used in conjunction with the VComm Max Range object. To use the object, simply connect the radio handle output of a radio/intercom object to the radio handle input of this object. The data that is present on the input pins is applied to the radio object to which it is attached.
Input Pins
Handle	Radio Handle from either the VComm GENERIC Radio, V8 DIS Only or the VComm GENERIC Radio, V8 DIS/HLA.
Min Range	The Min Range pin is used to set the minimum range in units meters for the radio modeling. It accepts any floating point number greater than or equal to 1.
Example

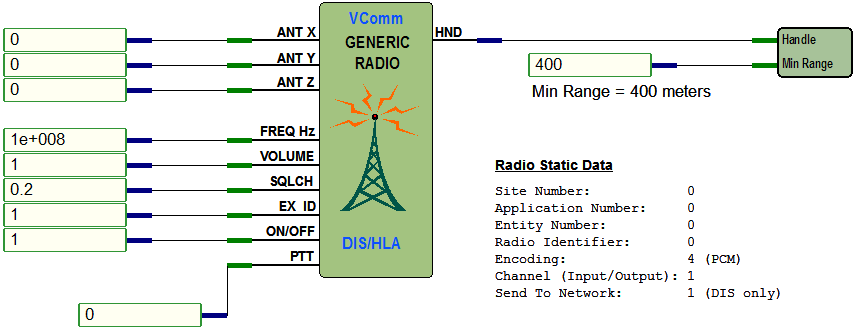

In this example, a VComm GENERIC Radio is connected to a VComm Min Range object and the minimum range is set to 400 meters.
